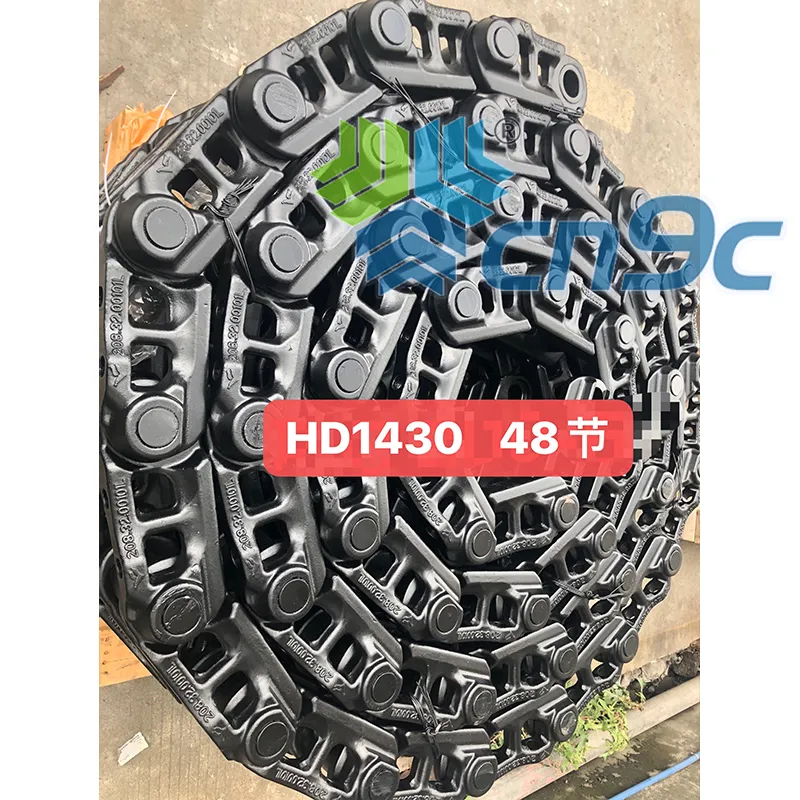

HD1430 Excavator Undercarriage Track Chain – 48-Link Configuration

The HD1430 Excavator Undercarriage Track Chain is a model-specific replacement component for crawler excavator undercarriage maintenance and repair. This product listing identifies a 48-link track chain for the HD1430 application, giving equipment parts distributors, machinery repair workshops and fleet maintenance teams a specific reference when sourcing replacement components.

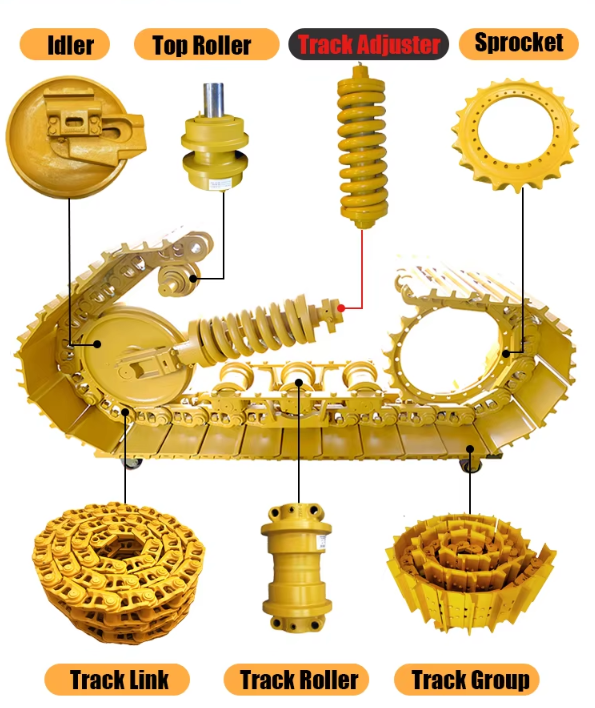

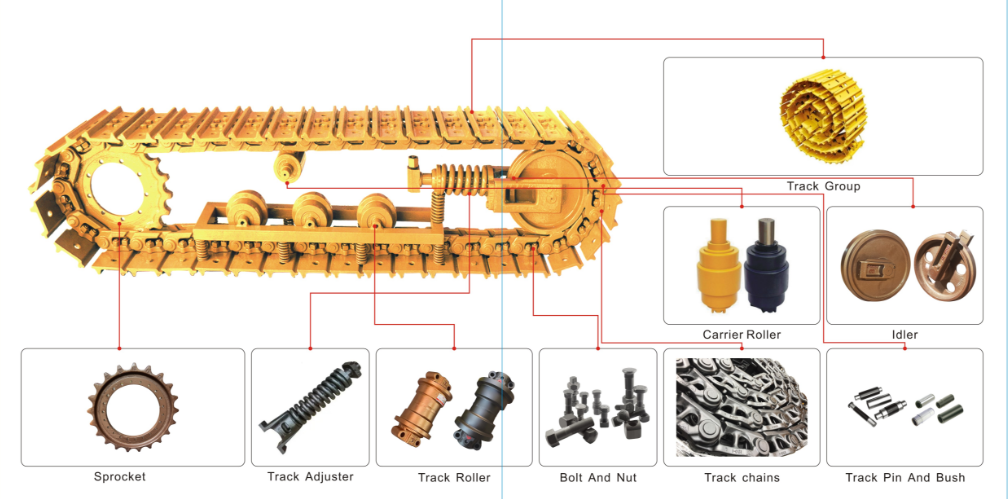

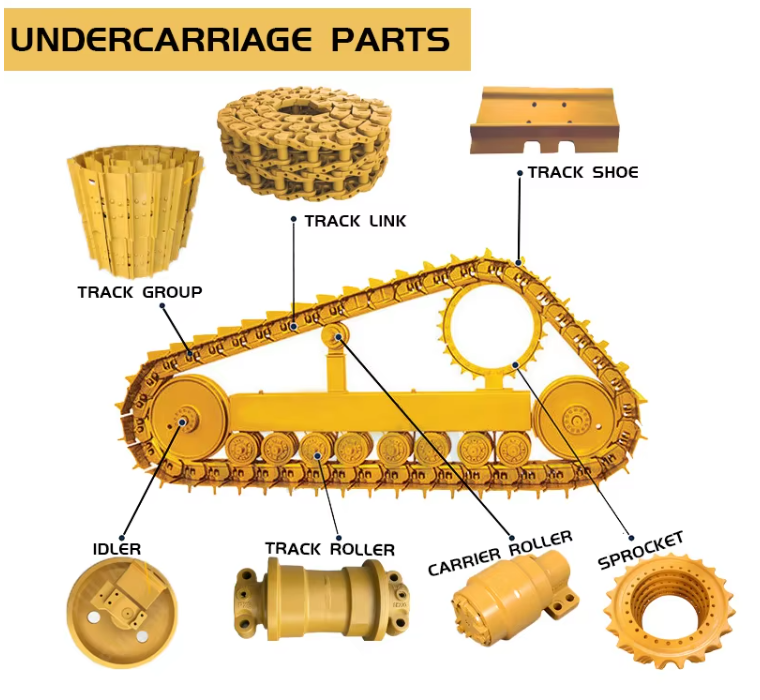

The track chain forms the continuous linked structure of the crawler undercarriage. Connected through pins and bushings, it articulates as the excavator moves and engages with the drive sprocket while running around the front idler and supporting rollers. Selecting the correct chain configuration is important for proper fitment and compatibility with the surrounding undercarriage components.

When purchasing an HD1430 track chain, buyers should verify the machine model, original part reference, link count and relevant dimensions before confirming an order. These checks are particularly important when replacing an existing assembly or sourcing parts for multiple machines.

HD1430 48-Link Track Chain Compatibility and Model Identification

The product listing identifies the HD1430 48-link excavator undercarriage track chain and also references HD512, HD512III, HD700VII, HD820III, HD820R and HD1430III in its model description. These references should be checked individually against the actual machine configuration before ordering, as a shared product listing does not establish that every model uses an interchangeable track chain.

For accurate product identification, confirm the following information:

• Machine model: Identify the complete model designation, including any series or version suffix.

• Link quantity: Verify that the required configuration matches the listed 48-link assembly.

• Original part number: Check the equipment parts catalog or existing component records for the applicable reference.

• Chain pitch: Confirm the distance between adjacent chain joints to establish compatibility with the drive sprocket.

• Joint dimensions: Verify the relevant pin and bushing dimensions and joint configuration.

• Track shoe mounting: Check the mounting dimensions if existing track shoes will be reused.

If the original part number is unavailable, provide the machine identification details, photographs of the existing chain and any available technical drawings. These details can help clarify the required configuration before a replacement is confirmed.

What Does the 48-Link Configuration Mean?

The 48-link designation identifies the stated link quantity of this track chain configuration. It is a useful reference when comparing the existing undercarriage assembly with the replacement product, but link count alone cannot establish complete dimensional compatibility.

Before ordering the HD1430 48-link track chain, consider the following checks:

• Link count and overall configuration: Confirm that the replacement matches the existing assembly and the applicable machine specification.

• Pitch and sprocket engagement: Ensure that the chain geometry matches the drive sprocket requirements.

• Pin and bushing arrangement: Check the joint design and dimensions against the original chain.

• Installation interfaces: Confirm compatibility with the idler, rollers and any track shoes intended for reuse.

• Supply scope: Clarify whether the order covers the track chain assembly alone or includes track shoes and associated fastening hardware.

Where dimensional information is uncertain, use the original parts documentation or verified measurements rather than estimating specifications from the HD1430 model designation.

Undercarriage Inspection Before Replacing the HD1430 Track Chain

Replacing a worn track chain provides an opportunity to inspect the adjoining undercarriage components. Their condition can affect chain engagement, running alignment and the performance of the replacement assembly.

Drive Sprocket Condition

The drive sprocket transfers driving force to the track chain through the engagement of its teeth with the chain joints. Inspect the teeth for uneven wear, damage or changes in profile. Confirm that the sprocket is compatible with the replacement chain before installation.

Track Rollers and Front Idler

Track rollers support the machine's undercarriage load, while the front idler guides the chain along its running path. Check for abnormal wear, visible damage and alignment issues that could affect the movement of the new chain.

Track Shoes and Mounting Hardware

If the existing track shoes will be reused, inspect their condition and verify the mounting-hole arrangement, bolt spacing and fastening requirements. Clarify whether replacement shoes or hardware are required so the quotation reflects the intended supply scope.

Track Tension and Running Alignment

Incorrect track tension can contribute to excessive wear and abnormal loading across the undercarriage. After installation, follow the excavator manufacturer's maintenance procedures for track adjustment and check that the chain runs correctly through the supporting components.

For other compatible replacement components, explore our heavy equipment undercarriage parts range to coordinate your parts purchasing requirements.

When Should an HD1430 Track Chain Be Replaced?

Track chain replacement should be based on measured wear, inspection results and the applicable equipment manufacturer's service limits. The following conditions may indicate that the existing assembly requires further assessment:

• Excessive wear or abnormal elongation around the pin-and-bushing joints.

• Cracks, deformation or other visible damage to individual track links.

• Irregular engagement between the chain and drive sprocket.

• Uneven wear across the chain, rollers or idler.

• Repeated track adjustment requirements or abnormal chain movement.

• Damage to track shoe mounting points or associated fastening hardware.

These symptoms do not automatically mean that the complete track chain must be replaced. The appropriate maintenance decision depends on the measured condition of the assembly and the manufacturer's recommended limits. Inspect the surrounding components to identify whether additional repairs are necessary.

HD1430 Track Chain Purchasing for Equipment Parts Distributors

For machinery parts distributors, repair workshops and fleet maintenance teams, accurate part identification helps simplify quotations, inventory planning and repeat purchasing. A model-specific product reference is particularly useful when sourcing replacement chains for older equipment or managing orders covering several machine configurations.

When requesting a quotation for the HD1430 excavator undercarriage track chain, prepare the following information where available:

• Complete machine model and serial number.

• Original part number or existing supplier reference.

• Confirmation of the required 48-link configuration.

• Chain pitch and relevant joint dimensions, if known.

• Required quantity and whether the purchase covers one or both sides of the machine.

• Confirmation of whether track shoes and fastening hardware are required.

• Destination country and shipping requirements.

For repeat orders, retaining confirmed part references and machine identification details can help reduce specification discrepancies and improve consistency when replenishing spare parts inventory.

For other machine-specific options, visit our Steel Track Chains category to explore additional product listings.

Frequently Asked Questions About the HD1430 Excavator Undercarriage Track Chain

What is the link count of this HD1430 track chain?

The product listing identifies a 48-link configuration. Buyers should verify the required link quantity and other dimensional specifications against the actual machine before ordering.

Does the HD1430 track chain also fit the HD1430III?

The product description references both HD1430 and HD1430III, but compatibility should be confirmed for the specific machine version. Check the original part number, chain dimensions and undercarriage configuration before treating the assemblies as interchangeable.

Can the same track chain be used on HD512 and HD820 excavators?

The listing also references HD512, HD512III, HD820III and HD820R. However, these references do not establish universal interchangeability. Confirm the required specifications and applicable part reference for each machine individually.

Does the 48-link track chain include track shoes?

The product supply scope should be confirmed when requesting a quotation. Specify whether you require the track chain assembly alone or a configuration that also includes track shoes and fastening hardware.

What information is needed if I do not know the original part number?

Provide the complete machine model, serial number if available, photographs of the existing assembly and any known dimensions. These details can help with product identification, although final fitment should be confirmed before an order is placed.
