Excavator E320 Track Chain Track Link 49-Links

Excavator E320 Track Chain Track Link – 49-Link Configuration

The Excavator E320 Track Chain Track Link is a model-specific undercarriage replacement option for buyers sourcing track chain assemblies for compatible Caterpillar E320 excavators. The 49-link configuration is an important identification detail when matching a replacement assembly to the existing crawler undercarriage.

A track chain assembly consists of interconnected track links joined by pins and bushings. It forms a continuous running chain that engages with the drive sprocket and travels around the front idler, while the track rollers support the chain during machine operation. Correct matching helps maintain proper engagement between the chain and the surrounding undercarriage components.

Before purchasing this CAT E320 track link assembly, buyers should verify the complete machine model, original part number and required undercarriage specifications. The number of links alone does not establish compatibility, as different machine versions may use different chain pitches, joint configurations and installation dimensions.

What to Verify Before Ordering a 49-Link E320 Track Chain

For replacement projects, equipment maintenance and aftermarket parts distribution, checking the following details helps reduce the risk of ordering an incompatible track chain.

Where the original part number is unavailable, photographs of the existing track chain, joint assembly and track shoe mounting points can help with identification. Dimensional drawings or measurements are also useful when confirming a replacement for an older machine.

Track Chain Assembly or Individual Track Links?

When sourcing an E320 track chain track link, it is important to distinguish between a complete track chain assembly and individual replacement track links. Although the terms are sometimes used interchangeably in aftermarket catalogs, they may describe different supply requirements.

• Complete track chain assembly: Intended for replacement of the continuous chain assembly when its overall condition or wear makes replacement necessary.

• Individual track links: May be considered for specific repair requirements, subject to the condition of the remaining chain and the feasibility of rebuilding the assembly.

• Track chain with track shoes: Requires confirmation of whether the shoes and associated mounting hardware are included in the quoted supply.

For equipment distributors and repair workshops, confirming the required supply scope before requesting a quotation helps avoid misunderstandings about the quantity, assembly configuration and components included in an order.

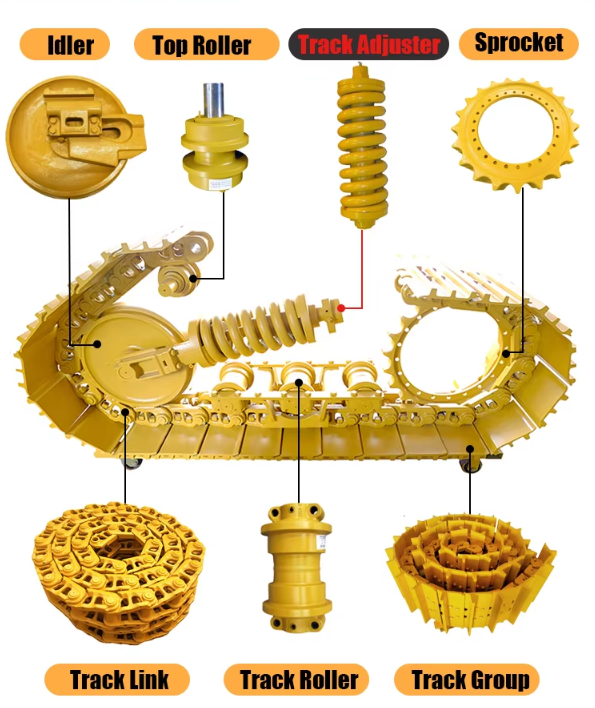

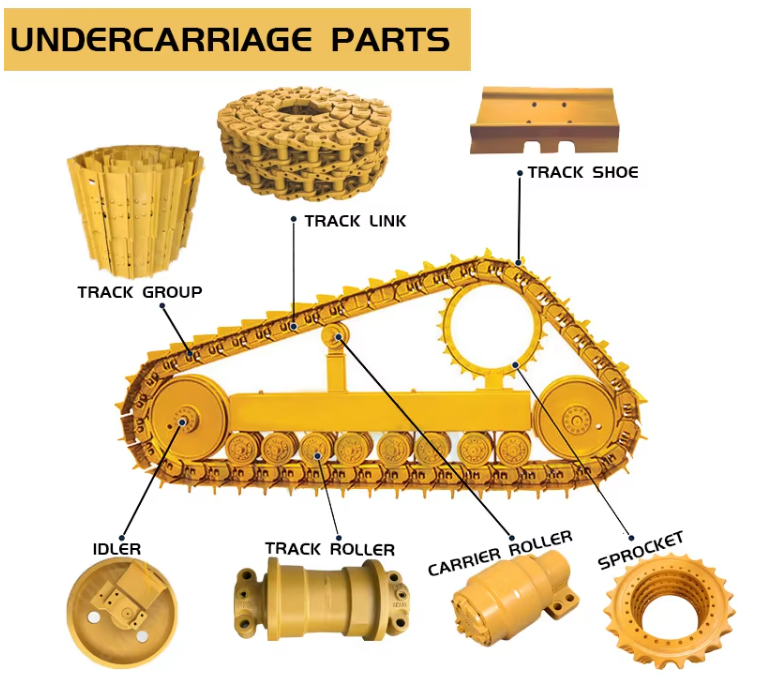

Undercarriage Compatibility for CAT E320 Track Chains

A replacement track chain works as part of a complete crawler undercarriage. Even when the link count matches, wear or dimensional differences in adjoining components can affect chain engagement, alignment and operating performance.

Drive Sprocket Engagement

The drive sprocket transfers driving force to the track chain. Check the sprocket teeth for abnormal wear and verify that the replacement chain matches the required pitch and engagement geometry. A worn sprocket may affect the performance of a newly installed chain.

Track Rollers and Front Idler

Track rollers support the undercarriage load, while the front idler guides the track and works with the track adjustment mechanism. Inspect these components for uneven wear, alignment issues and other visible damage when replacing the E320 track chain.

Track Shoes and Fasteners

If the existing track shoes are intended for reuse, confirm their mounting dimensions and fastening arrangement against the replacement chain. Damaged shoes, worn mounting holes or unsuitable fasteners should be assessed before reassembly.

For other machine-specific replacement options, visit our steel track chains product category to explore the available track chain listings.

When Should an E320 Track Chain Be Inspected?

Regular undercarriage inspections help identify wear before it develops into more extensive maintenance work. When checking an existing E320 track chain, pay attention to the following warning signs:

• Visible wear, cracking or deformation on individual track links.

• Excessive looseness or abnormal movement around pin-and-bushing joints.

• Irregular chain movement or engagement with the drive sprocket.

• Uneven wear patterns across the track chain, rollers or idler.

• Repeated track adjustment requirements or abnormal chain tension.

• Damage to track shoe mounting points or associated fastening hardware.

These symptoms do not automatically mean that the entire track chain must be replaced. The appropriate repair depends on the measured wear, component condition and machine manufacturer's service limits. Inspect the related undercarriage components before deciding whether to replace the chain assembly or carry out a more limited repair.

Ordering E320 Track Chain Track Links for B2B Projects

For construction machinery parts distributors, repair workshops and fleet maintenance buyers, accurate product identification is particularly important when purchasing replacement track chains in volume. Providing complete machine and part information can help streamline quotation preparation and reduce unnecessary fitment checks.

When requesting pricing and availability for this 49-link E320 track chain, prepare the following information where available:

• Complete machine model and serial number.

• Original OEM part number or existing supplier reference.

• Required quantity and whether the order covers one side or both sides of the machine.

• Track pitch, link count and relevant dimensions.

• Photos or drawings of the existing chain and joint configuration.

• Confirmation of whether track shoes and fastening hardware are required.

• Destination country and preferred shipping arrangements.

For repeat purchases, retaining the confirmed machine details and approved part references can also help maintain consistency across subsequent maintenance orders and inventory replenishment.
