Excavator undercarriage parts operate in one of the harshest areas of the machine. Track chains, rollers, idlers, sprockets, track shoes, and related components constantly face heavy loads, impact, abrasion, mud, sand, and uneven terrain.
For equipment owners, repair companies, distributors, and construction machinery parts buyers, choosing the right undercarriage parts is not simply a matter of finding the lowest price.
The real purchasing goal is to find parts that provide the right balance of:
Correct machine compatibility
Wear resistance
Structural strength
Service life
Replacement convenience
Cost per operating hour
Reliable supply
This guide explains how to evaluate and buy excavator undercarriage parts, what specifications buyers should confirm, and how to avoid common purchasing mistakes.
The undercarriage supports the excavator, transfers machine movement, and maintains stable contact with the ground.
A typical crawler excavator undercarriage includes:
Track chains
Track links
Pins and bushings
Track shoes
Bottom rollers
Top rollers
Front idlers
Sprockets

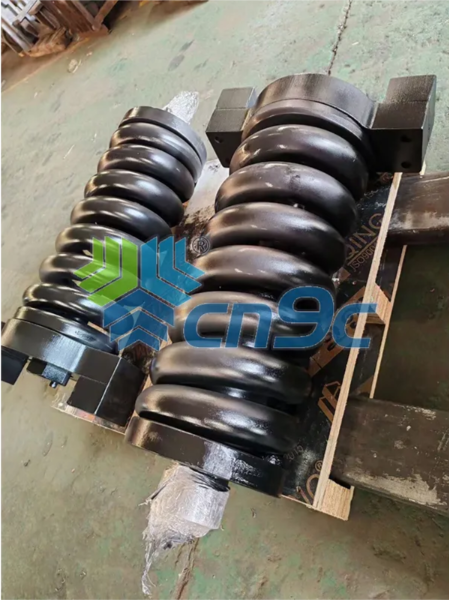

Track adjusters
Recoil springs
Track bolts and nuts
These components work together as a complete system.
A badly worn or incorrectly matched component can accelerate wear on surrounding parts. This is why buyers should evaluate the entire undercarriage condition rather than purchasing individual parts in isolation.
Undercarriage parts are wear parts, but that does not mean all products deliver the same service life.
Differences in material quality, manufacturing accuracy, heat treatment, sealing, and hardness can significantly influence performance.
Poor-quality components may lead to:
Premature wear
Cracking
Oil leakage
Roller seizure
Incorrect track alignment
Chain and sprocket mismatch
Increased machine vibration
Frequent replacement
Unexpected downtime
For high-utilization excavators, a lower-priced part can become more expensive if it requires replacement too frequently.
Professional buyers therefore evaluate total operating cost, not only unit purchase price.
The first step when buying excavator undercarriage parts is confirming the exact machine.
Provide the supplier with:
Excavator manufacturer
Machine model
Serial number if available
Year or production series when relevant
OEM reference number
Existing part photos
For example, two excavators with similar model names may use different undercarriage configurations depending on production year or regional specification.
Do not assume that parts fit simply because the machine tonnage is similar.
The OEM part number is often the fastest way to confirm compatibility.
It is especially useful when purchasing:
Track rollers
Carrier rollers
Idlers
Sprockets
Track adjusters
Bolts
Specific track groups
However, part numbers may sometimes be superseded or replaced by newer references.
A professional aftermarket supplier should be able to cross-reference:
OEM number → replacement part number → compatible machine model
If the OEM number is unavailable, dimensional verification becomes more important.
When the exact part number is uncertain, physical measurements can help confirm fitment.
For a track roller, buyers may need to confirm:
Overall width
Roller diameter
Flange diameter
Mounting-hole spacing
Bolt diameter
Body width
Center height
For a top roller or carrier roller:
Roller diameter
Overall width
Mounting pattern
Shaft diameter
Bolt-hole spacing
Important dimensions can include:
Outside diameter
Tread width
Flange width
Shaft diameter
Overall width
Mounting dimensions
Confirm:
Number of teeth
Outside diameter
Bolt-hole quantity
Bolt-hole diameter
Pitch-circle diameter
Center bore
Measurements are especially useful for older machines, imported machines, or equipment with previous aftermarket modifications.
Different components have different wear patterns and purchasing considerations.
The track chain is one of the most important and expensive undercarriage components.
It includes links, pins, and bushings that rotate continuously as the track moves around the idler and sprocket.
When purchasing track chains, confirm:
Track pitch
Number of links
Link height
Bushing dimensions
Shoe-hole configuration
Machine model
OEM reference
A quality track chain should offer:
Consistent link dimensions
Strong pin and bushing material
Controlled heat treatment
Accurate pitch
Suitable surface hardness
Strong resistance to impact and abrasion
Incorrect chain pitch can result in poor sprocket engagement and accelerated wear.
Bottom rollers, also called track rollers, carry much of the machine weight.
They are exposed to continuous impact and abrasive material.
When selecting track rollers, buyers should evaluate:
Roller body material
Tread hardness
Hardened depth
Flange strength
Shaft material
Internal bearing or bushing design
Seal performance
Lubrication retention
A roller that loses lubrication can quickly seize and damage the track chain.
Top rollers are also known as:
Carrier rollers
Upper rollers
They support the upper section of the track chain.
Although they normally carry less load than bottom rollers, they are still critical for smooth track movement.
Common problems include:
Oil leakage
Seized rotation
Flange wear
Abnormal noise
Tread wear
Buyers should pay particular attention to seal quality and dimensional accuracy.
The front idler guides the track chain and helps control track tension.
A poor-quality or badly worn idler can contribute to:
Track misalignment
Excessive side movement
Chain derailment
Uneven track wear
Important purchasing factors include:
Tread profile
Flange dimensions
Shaft strength
Bearing or bushing construction
Sealing system
Wear resistance
The sprocket transfers driving force from the excavator's final drive to the track chain.
Sprocket and chain compatibility is extremely important.
Confirm:
Tooth count
Tooth profile
Pitch
Bolt configuration
Mounting dimensions
Compatible chain specification
A poorly matched sprocket can significantly shorten the life of a new track chain.
Track shoes provide ground contact and traction.
Important specifications include:
Shoe width
Plate thickness
Grouser height
Bolt-hole pattern
Material
Heat treatment
Shoe type
Wider shoes provide lower ground pressure but may increase side loading under certain operating conditions.
The correct shoe depends on the terrain and machine application.
Track shoe width should be matched to ground conditions.
Often suitable for:
Hard ground
Rocky terrain
Quarry work
Potential advantages:
Lower bending stress
Reduced side loading
Better durability on hard surfaces
Often used for:
Mud
Soft ground
Wet soil
Low ground pressure applications
Potential advantages:
Better flotation
Reduced sinking
Increased contact area
However, wider is not always better.
Excessively wide shoes on hard terrain may increase twisting forces on links, rollers, and other undercarriage parts.
Material selection has a major influence on undercarriage performance.
Different manufacturers may use different steel grades and processes.
When comparing suppliers, ask about:
Raw material grade
Forging or casting process
Heat-treatment method
Surface hardness
Core hardness
Hardened depth
Do not evaluate hardness as a single number.
A component that is excessively hard can become brittle, while insufficient hardness may result in rapid wear.
The objective is to achieve a suitable balance of:
surface wear resistance + core toughness
Heat treatment is one of the most important manufacturing stages for excavator undercarriage parts.
Processes may include:
Quenching
Tempering
Induction hardening
Through hardening
Different components require different hardness profiles.
For example, roller treads need high wear resistance while the internal material must retain enough toughness to withstand impact.
Ask suppliers whether they can provide:
Hardness range
Hardened-depth data
Heat-treatment inspection records
This is particularly important for bulk procurement.
Rollers and idlers contain moving internal components.
Their service life depends heavily on retaining lubrication and preventing contamination.
A good sealing system helps keep out:
Sand
Mud
Water
Dust
Fine abrasive particles
Poor seal performance may lead to lubricant leakage followed by bearing or bushing damage.
When sourcing rollers and idlers, ask about:
Seal type
Seal material
Lubrication method
Leakage testing
Rotation testing
Oil leakage shortly after installation is often a sign of poor sealing quality or manufacturing inconsistency.
The same excavator may require different purchasing priorities depending on the application.
Main challenges include:
High impact
Sharp rock
Abrasive material
Heavy machine loads
Priority should be given to:
High wear resistance
Deep hardening
Strong flanges
Reliable seals
Typical applications include:
Earthmoving
Foundation work
Road construction
Utility installation
A balanced undercarriage specification is usually more important than extreme hardness.
Main problems include:
Mud packing
Increased track tension
Seal contamination
Corrosion
Buyers should consider:
Strong sealing
Easy-clean designs
Correct shoe width
Demolition applications create:
Sharp debris
Repeated impact
High side loading
Heavy-duty rollers, strong track shoes, and durable chains are especially important.
Buyers usually have two main options.
OEM parts generally offer:
Original machine specifications
Strong compatibility confidence
Established quality standards
Potential disadvantages include:
Higher purchase cost
Longer lead times in some markets
Limited sourcing flexibility
Quality aftermarket parts can offer:
Competitive pricing
Wider supplier choice
Flexible order quantities
Faster replacement availability
Compatibility with multiple machine brands
However, aftermarket quality varies significantly.
A reputable supplier should be able to provide:
OEM cross-reference information
Machine compatibility
Material information
Quality inspection
Traceability
Consistent production standards
For distributors and fleet buyers, quality aftermarket undercarriage parts can provide a strong balance between cost and service life.
A good supplier does more than quote a price.
When evaluating an excavator undercarriage parts supplier, consider the following factors.
Can the supplier provide:
Track chains
Track rollers
Carrier rollers
Idlers
Sprockets
Track shoes
Track adjusters
Bolts and nuts
Buying multiple undercarriage components from one source can simplify purchasing and shipping.
Ask what brands and models they support.
Common excavator brands may include:
Caterpillar
Komatsu
Hitachi
Volvo
Kobelco
Hyundai
Doosan
SANY
XCMG
LiuGong
Broad model coverage is especially valuable for wholesalers and repair businesses.
Ask how the supplier inspects:
Dimensions
Hardness
Surface defects
Seal performance
Rotation
Assembly
Packaging
The supplier should be able to help identify parts from:
OEM numbers
Machine models
Dimensions
Photos
Existing samples
This reduces ordering errors.
A common purchasing mistake is selecting undercarriage parts only by unit price.
Consider two track rollers:
| Item | Roller A | Roller B |
|---|---|---|
| Purchase Price | Lower | Higher |
| Service Life | Shorter | Longer |
| Replacement Frequency | Higher | Lower |
| Downtime | Higher | Lower |
| Cost per Hour | Potentially Higher | Potentially Lower |
The lowest-cost product at the time of purchase may not deliver the lowest operating cost.
For high-utilization machines, service life and downtime can be more important than purchase price.
Not every repair requires a full undercarriage replacement.
Individual replacement can be suitable when:
Only one component is damaged
Surrounding components still have significant service life
Wear is localized
The machine operates limited hours
A more complete replacement may be appropriate when:
The chain is severely stretched
Sprockets are badly worn
Multiple rollers are leaking or seized
Idlers have reached wear limits
The machine requires frequent repairs
New and heavily worn parts sometimes do not work well together.
For example, installing a new chain on a severely worn sprocket may accelerate chain wear.
A 20-ton excavator does not automatically use the same undercarriage parts as another 20-ton model.
Always verify exact compatibility.
Part numbers make cross-referencing much more reliable.
Very low pricing may reflect differences in:
Material
Heat treatment
Seal quality
Manufacturing tolerances
Undercarriage wear is interconnected.
Always inspect neighboring components.
Even high-quality replacement parts can wear quickly if track tension is incorrect.
When model or part-number information is incomplete, measure the component before ordering.
For faster and more accurate quotations, procurement teams should provide:
Excavator brand
Excavator model
Serial number
Part name
OEM part number
Required quantity
Destination country
Photos if available
For track chains:
Pitch
Number of links
Bolt-hole configuration
For track shoes:
Width
Bolt-hole spacing
Thickness
Grouser type
For rollers and idlers:
Overall dimensions
Mounting-hole spacing
Roller diameter
A detailed RFQ significantly reduces the risk of incorrect supply.
Wholesalers and machinery-parts distributors usually need a different purchasing strategy from individual machine owners.
Consider standardizing procurement around:
High-demand excavator models
Frequently replaced OEM numbers
Common roller sizes
High-volume track-chain specifications
Popular sprocket and idler models
You can also ask suppliers about:
MOQ
Mixed-model orders
Private labeling
Custom packaging
Pallet requirements
Container loading
Spare-parts catalogs
Product identification labels
This can help reduce inventory complexity and improve resale efficiency.
Before installation, check:
Part number
Physical dimensions
Bolt-hole pattern
Surface finish
Weld quality where applicable
Seal condition
Roller rotation
Shipping damage
For larger orders, buyers may also request:
Dimensional inspection reports
Hardness reports
Material certificates
Batch identification
Do not install a questionable component simply because the machine is already disassembled.
Buying excavator undercarriage parts should not be treated as a simple price comparison.
Track chains, rollers, idlers, sprockets, and track shoes form an integrated system. Their compatibility, material quality, heat treatment, dimensional accuracy, and wear resistance directly affect machine reliability and operating costs.
For individual equipment owners, correct part identification is the first priority.
For fleet operators, the focus should be on service life and cost per operating hour.
For distributors and wholesalers, priorities also include:
Model coverage
Supply stability
Consistent manufacturing quality
OEM cross-reference capability
Bulk-order flexibility
The right undercarriage supplier should therefore provide more than replacement parts. They should help buyers identify the correct components, reduce fitment errors, maintain consistent quality, and lower long-term equipment operating costs.
Typical excavator undercarriage components include track chains, pins, bushings, track shoes, bottom rollers, top rollers, idlers, sprockets, track adjusters, recoil springs, and related bolts and nuts.
Start with the machine manufacturer, model, serial number, and OEM part number. If the number is unavailable, provide photos and detailed measurements to the supplier.
Quality aftermarket parts can be reliable when manufactured using appropriate materials, heat treatment, dimensional control, and sealing systems. Supplier quality varies, so buyers should evaluate production and inspection capability.
If the sprocket is already significantly worn, replacing both can help prevent accelerated wear on the new chain. The sprocket tooth profile and chain condition should always be inspected together.
Check roller material, surface hardness, hardened depth, shaft quality, sealing system, lubrication, dimensional accuracy, and supplier quality-control procedures.
Bottom rollers support most of the machine's weight and guide the lower track chain. Top rollers, also called carrier rollers, support the upper return section of the track.
Wider track shoes generally reduce ground pressure and improve flotation on soft or muddy ground. However, excessively wide shoes can increase stress on other undercarriage components.
Provide the machine brand, model, serial number, OEM part number, part description, quantity, and photos. Dimensional measurements are useful when part identification is uncertain.
Compare product quality, material and heat treatment, model coverage, technical support, dimensional accuracy, quality control, lead time, minimum order quantities, and total cost rather than price alone.
Many specialized manufacturers and suppliers provide complete undercarriage systems including track chains, rollers, idlers, sprockets, track shoes, and related components. Consolidating purchases can simplify compatibility, procurement, and shipping.
< Previous: None
We Look Forward To Working With You.
