Hitachi EX60 Bucket H Link I Link Genuine Replacement Parts

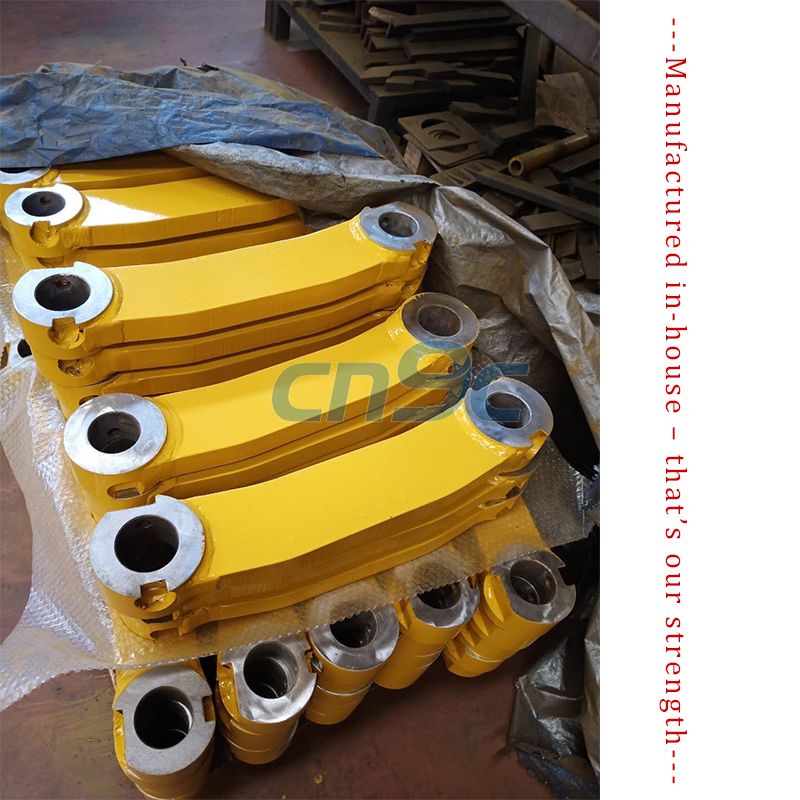

H‑Link (Bucket H‑Link / Side Link)

8050336 – EX60‑2, EX60‑3, EX60LCK‑3, EX60WD‑2
7017839 – H‑Link Assembly
I‑Link (Bucket I‑Link / Connecting Link)
3037342 – I‑Link
8037570 – I‑Link
3076932 – I‑Link
8066904 – I‑Link

Inquire Now

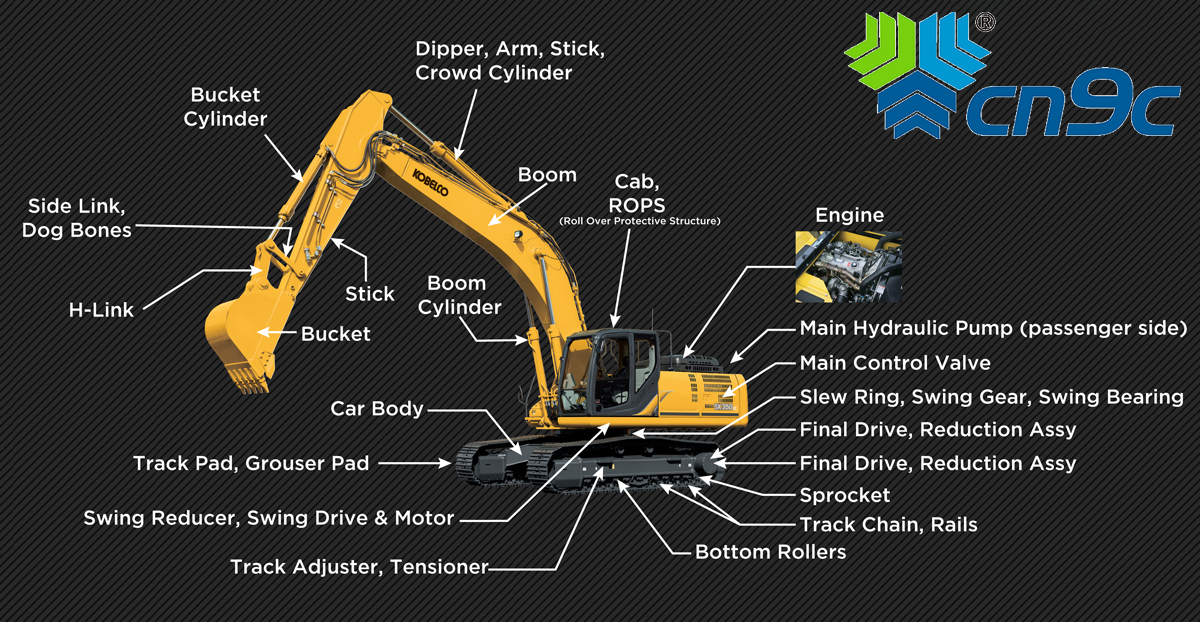

Function of Excavator Bucket H-Link & I-Link (Bucket Linkage)

Below is plain English explanation for overseas buyers, suitable for product description:

Core Function

H-links and I-links are key connecting parts of the excavator bucket linkage system. They work with the bucket cylinder, arm and boom to transmit hydraulic power.

Detailed Working Principle

Power transmission
They connect the bucket cylinder to the bucket. When the hydraulic cylinder extends or retracts, the links pull/push the bucket to perform digging, scooping, lifting and dumping materials.
Force distribution & load bearing
These links bear heavy impact and load during excavation. They share stress to protect the bucket, arm and hydraulic cylinder from damage.
Stable movement
They keep the bucket moving in a fixed track, ensuring flexible and steady rotation of the bucket during operation.

Simple Summary for product page

Bucket H-link and I-link are critical linkage components. They connect the bucket cylinder and bucket, transfer hydraulic force to realize bucket digging and dumping actions, while supporting heavy working loads and stabilizing bucket movement.

More Product Models

This page showcases only a selection of our products. For additional products, please contact us directly.

Suitable for excavator undercarriage components
KOMATSU	CATERPILLAR	HITACHI	SUMITOMO	KOBELCO
PC100	E180	EX60	SH120	SK100
PC120	CAT215	EX100	SH200	SK120
PC150	CAT215DLC	EX120	SH260	SK200
PC200	CAT235	EX200	SH280	SK200-5
PC200-6	E240	EX270	SH340	SK220
PC300-5	E200B	EX300	SH300	SK250
PC400-3/5	E320	EX400	DAEWOO	SK270
PC450-6	CAT312	EX450	DH180	SK330-6
PC650	CAT315L	EX1100	DH220	SK480
PC750	CAT318BL	EX1200	DH280	SK850
PC800	E325	ZX110	DH330	VOLVO
PC850	E330	ZX200	DH450	EC210
PC1250-8	E345	ZX240	KATO	EC240
HYUNDAI	E349	ZX330	HD400	EC290
R200	E450	ZX350-5G	HD700	EC300D
R210	E374	ZX870-5	HD770	EC700
R220	E385		HD800
R290	E390		HD820
R320			HD1250
R480
