Daewoo Doosan crawler excavator spare part track rollers/Bottom Rollers

Bottom Track Roller for Daewoo Doosan Excavators

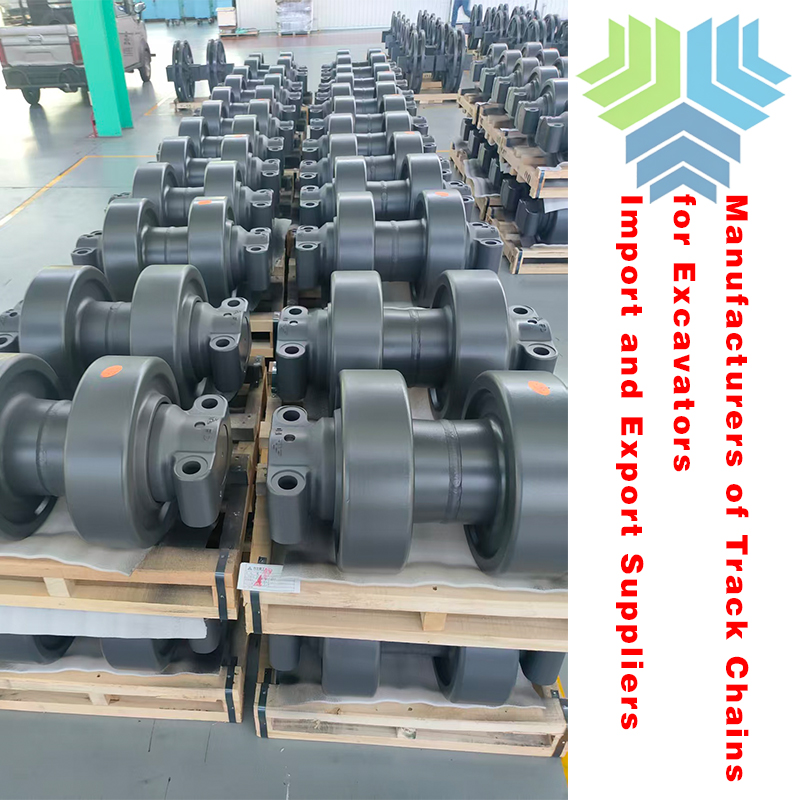

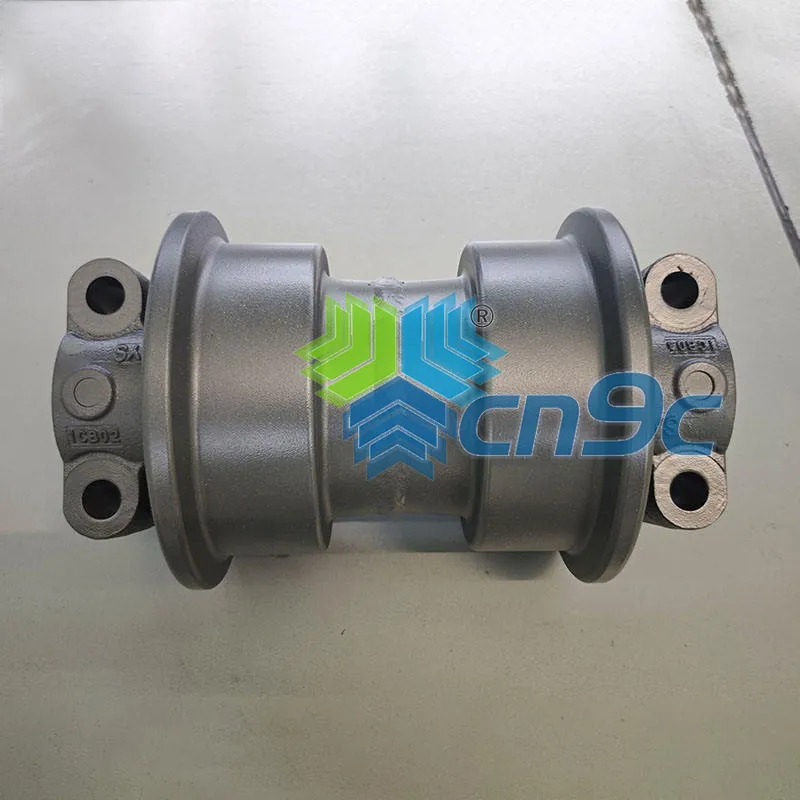

A Bottom Track Roller for Daewoo Doosan excavators is an undercarriage component that supports the crawler track and helps distribute machine weight across the track assembly. Also known as a lower roller or track roller, it runs along the track chain to support stable movement during excavation, earthmoving and other construction operations.

CN9C's Daewoo Doosan bottom roller product range covers selected DH and DX excavator models, including DX55, DX60, DX75, DH180, DH220, DH280, DH330 and DH450. The available listings represent selected applications rather than every configuration within these model families. For parts distributors, repair workshops and equipment maintenance teams, confirming the exact machine version and original part number is essential before selecting a replacement.

When sourcing replacement rollers, buyers should consider more than the excavator model name. Roller dimensions, mounting configuration, shaft arrangement and compatibility with the existing undercarriage all contribute to correct fitment.

Daewoo Doosan Bottom Roller Model Coverage

Different Daewoo Doosan excavators can use different bottom roller configurations. The following model groups are referenced in the current product listing and can help buyers identify the appropriate application for further confirmation.

• DX Series: DX55, DX60, DX75 and other listed DX-series applications.

• DH Medium Excavator Series: DH180, DH220 and DH280.

• DH Larger Excavator Series: DH330 and DH450.

These model references are intended to support initial product identification, not to indicate that one roller fits every machine in a series. Before ordering, confirm the full model designation, machine serial number where available, and applicable OEM or replacement part number.

If you cannot find the required model in the current listings, provide your machine information and existing roller details for further identification. You can also browse our complete Excavator Bottom Rollers category to explore other model-specific options.

How to Identify the Correct Bottom Track Roller

Accurate identification helps reduce fitment problems, unnecessary returns and delays during excavator maintenance. When purchasing a replacement bottom roller for a Daewoo Doosan machine, check the following details.

1. Machine Model and Original Part Number

Start with the complete excavator model designation and serial number, if available. Cross-reference the existing roller's part number with the applicable parts catalog or supplier reference. Model names alone may not distinguish between different undercarriage configurations or production versions.

2. Overall Dimensions and Mounting Configuration

Compare the replacement roller with the original component using verified technical drawings or measurements. Relevant details may include the overall roller width, outer diameter, mounting dimensions, shaft configuration and flange profile. These measurements help establish whether the roller can be installed correctly within the existing undercarriage.

3. Shaft, Sealing and Lubrication Arrangement

The shaft and internal joint arrangement must match the intended installation. Sealing and lubrication design are also important because they help protect internal components from contamination and support reliable operation. If the original configuration is unclear, provide photographs and available technical references instead of assuming that visually similar rollers are interchangeable.

4. Compatibility with the Existing Track System

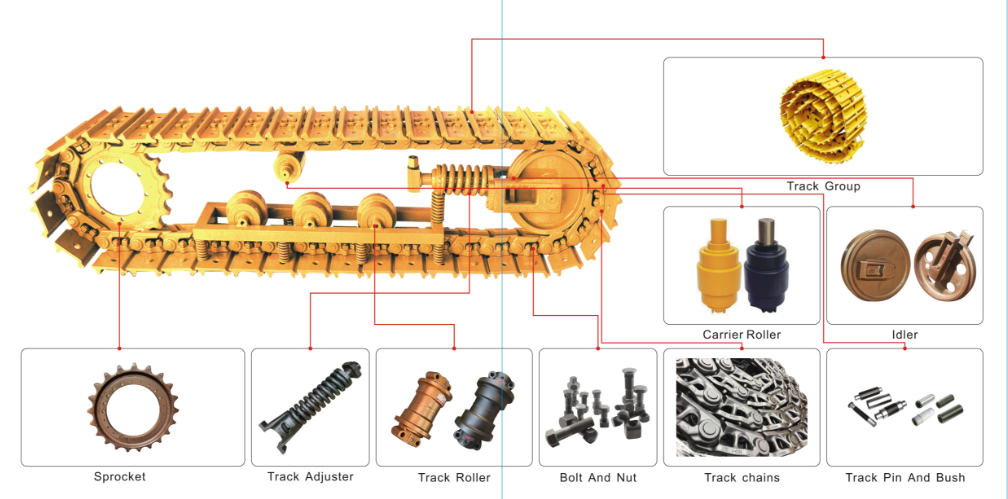

The bottom roller works alongside the track chain, track shoes, drive sprocket and front idler. Verify that the replacement roller is suitable for the machine's undercarriage arrangement and inspect surrounding components for abnormal wear. A compatible replacement should meet the required installation dimensions and operating specifications for the specific machine.

What Causes Bottom Track Roller Wear?

Bottom rollers operate under repeated loading as an excavator travels and performs work. Actual wear rates depend on the machine, ground conditions, operating practices and maintenance history. Recognizing common wear patterns can help maintenance teams determine when further inspection or replacement is necessary.

• Abrasive ground conditions: Sand, soil and other abrasive materials can accelerate wear on exposed roller surfaces and sealing areas.

• Repeated impact loading: Working over uneven terrain or hard obstacles can increase stress on the undercarriage.

• Contamination or lubrication problems: Damaged seals or inadequate lubrication, where applicable, may affect internal bearing and shaft components.

• Misalignment and uneven loading: Worn adjacent components or incorrect track adjustment can contribute to irregular roller wear.

• Extended operation with worn components: Delayed inspection may allow a developing undercarriage problem to affect additional parts.

These factors do not automatically mean that a roller must be replaced. Inspect the component and compare its measured condition with the applicable service limits before deciding on the appropriate repair.

Inspection Points Before Replacing a Daewoo Doosan Bottom Roller

When a bottom roller shows abnormal wear, inspect the surrounding undercarriage to help determine whether the problem is isolated or related to other components.

• Roller running surface: Look for abnormal wear, damage, cracks or deformation.

• Roller rotation: Check for restricted movement, unusual noise or other signs of internal damage.

• Sealing areas: Look for lubricant leakage, damaged seals or evidence of contamination.

• Mounting points: Inspect the installation area and fastening components for visible damage or looseness.

• Track chain and track shoes: Check for uneven wear or abnormal contact patterns that could affect roller operation.

• Track tension and alignment: Follow the excavator manufacturer's maintenance procedures to check adjustment and running alignment.

Replacing a damaged roller without addressing the underlying cause may result in recurring wear. A broader inspection can help maintenance teams determine whether additional undercarriage components require attention.

Bottom Track Rollers for Parts Distributors and Maintenance Buyers

For construction machinery parts distributors, repair workshops and fleet maintenance departments, accurate product matching is important for quotation preparation, spare parts inventory and repeat purchasing. When sourcing a bottom track roller for Daewoo Doosan excavators, providing complete identification information helps clarify the required configuration before an order is confirmed.

For a quotation, prepare the following information where available:

• Excavator brand, complete model and serial number.

• Original OEM part number or existing supplier reference.

• Required quantity and intended replacement scope.

• Roller dimensions or a technical drawing, if available.

• Clear photographs of the existing roller and its mounting arrangement.

• Destination country and shipping requirements.

For repeat orders covering multiple machines, a model-by-model parts list with confirmed part numbers can help reduce identification errors and improve inventory planning. If the required roller is not shown in the current catalog, contact our team with the available machine and component details for further review.

When planning a broader undercarriage replacement, you can also review our Steel Track Chains range to identify related components for your excavator maintenance requirements.

Frequently Asked Questions About Daewoo Doosan Bottom Track Rollers

What is the function of a bottom track roller on a Daewoo Doosan excavator?

The bottom track roller supports the crawler track and helps distribute the machine's weight through the undercarriage. It works with the track chain and other running gear components to support excavator travel.

Can the same bottom roller fit DX55, DX60 and DX75 excavators?

Compatibility should be verified for each machine configuration. Even when excavators belong to the same model family, their roller dimensions, mounting arrangements or part references may differ. Confirm the original part number and required specifications before ordering.

How can I order the correct bottom roller without an OEM part number?

Provide the complete excavator model, serial number if available, photographs of the existing roller and any known dimensions. These details can help identify the appropriate replacement, although final fitment should be confirmed before the order is placed.

When should an excavator bottom roller be replaced?

Replacement may be necessary when inspection identifies wear beyond the manufacturer's service limits, structural damage, abnormal rotation, internal damage or sealing problems that cannot be adequately repaired. The decision should be based on the actual component condition and applicable maintenance requirements.

Should bottom rollers be inspected together with track chains?

Yes. Bottom rollers and track chains operate as interconnected parts of the crawler undercarriage. Inspecting both can help identify uneven wear, alignment problems and other issues that may affect the performance of replacement components.
